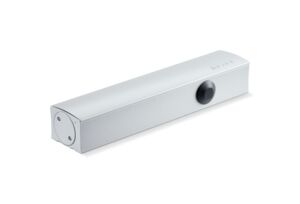

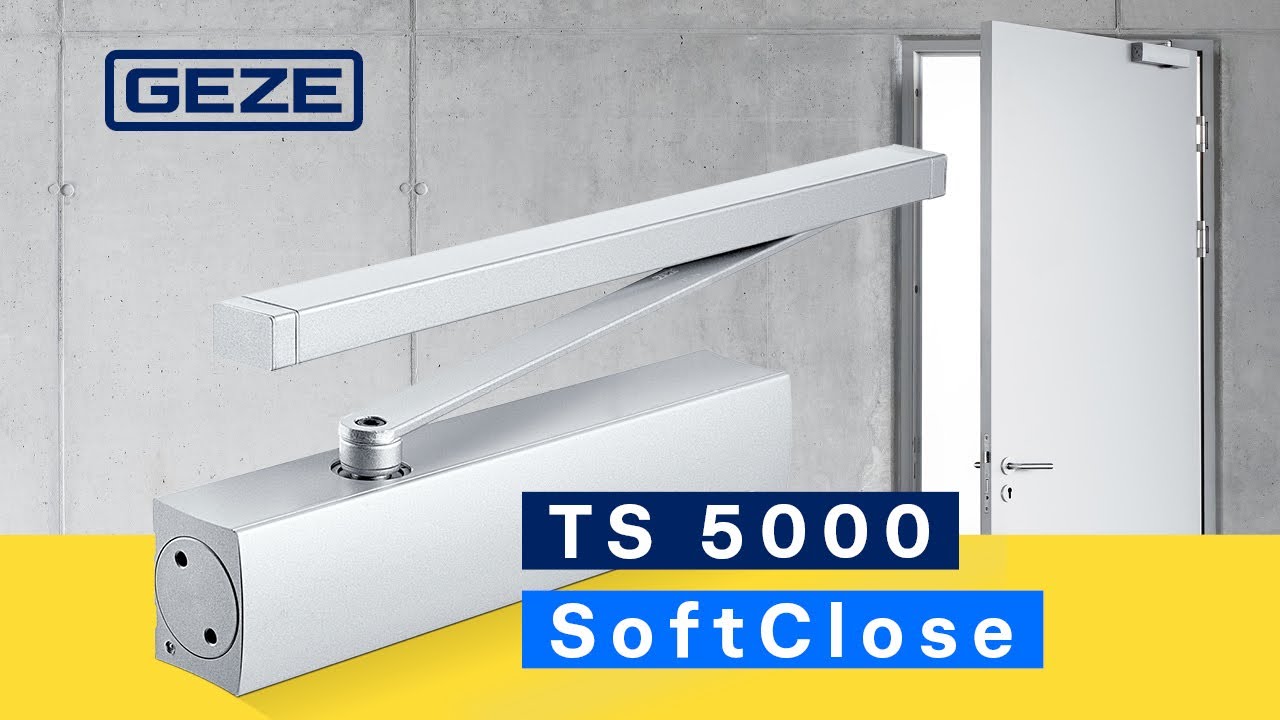

Closer body TS 5000 SoftClose
For overhead door closers with guide rail EN 2-6 with individually adjustable closing speed from 0-15° door opening angle
Closing force can be variably adjusted from the front
Visual closing force display ensures correct setting
Closing seed can be adjusted from the front via valve
Latching action/smooth latching function can be adjusted from the front via valve
Back check can be adjusted from the front via valve
Door closer, can be used for right and left hand doors
Ident-No. | Name | Description | Colour | DIN direction | Type of installation | Adjustable closing speed | Standard conformity | Closing force in accordance with EN 1154 | Closing force adjustable | Back check integrated | Latching action adjustable | Visual closing force display | Leaf width (max.) | Dimensions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 181792 | TS 5000 SoftClose door closer | Closing force EN 2-6, with back check and integrated latching action speed with variable adjustment, for door deceleration (without guide rail and lever) | silver-coloured | left / right | Door leaf installation hinge side, Transom installation opposite hinge side | Yes | EN 1154:1996/A1:2002/AC:2006 | EN 2 - 6 | Yes, stepless | Yes, hydraulically adjustable | Yes, via valve | Yes | 1400 mm | 287 x 47 x 60 mm |
| 181793 | TS 5000 SoftClose door closer | Closing force EN 2-6, with back check and integrated latching action speed with variable adjustment, for door deceleration (without guide rail and lever) | according to RAL | left / right | Door leaf installation hinge side, Transom installation opposite hinge side | Yes | EN 1154:1996/A1:2002/AC:2006 | EN 2 - 6 | Yes, stepless | Yes, hydraulically adjustable | Yes, via valve | Yes | 1400 mm | 287 x 47 x 60 mm |
| 183430 | TS 5000 SoftClose door closer | Closing force EN 2-6, with back check and integrated latching action speed with variable adjustment, for door deceleration (without guide rail and lever) | white RAL 9016 | left / right | Door leaf installation hinge side, Transom installation opposite hinge side | Yes | EN 1154:1996/A1:2002/AC:2006 | EN 2 - 6 | Yes, stepless | Yes, hydraulically adjustable | Yes, via valve | Yes | 1400 mm | 287 x 47 x 60 mm |
| 183431 | TS 5000 SoftClose door closer | Closing force EN 2-6, with back check and integrated latching action speed with variable adjustment, for door deceleration (without guide rail and lever) | Stainless steel face plate | left / right | Door leaf installation hinge side, Transom installation opposite hinge side | Yes | EN 1154:1996/A1:2002/AC:2006 | EN 2 - 6 | Yes, stepless | Yes, hydraulically adjustable | Yes, via valve | Yes | 1400 mm | 287 x 47 x 60 mm |
Select your desired system components here:
Accessories
Installation materials
Spare parts
Product Details
Technical data
Application Areas
- Fire and smoke protection doors
- Right and left single-action doors
- Single-action doors up to 1400 mm leaf width
- Door leaf installation hinge side and transom installation opposite hinge side
