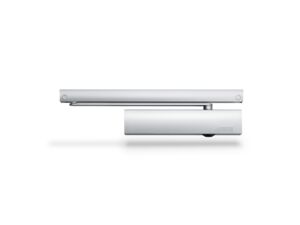

TS 5000 L ECline

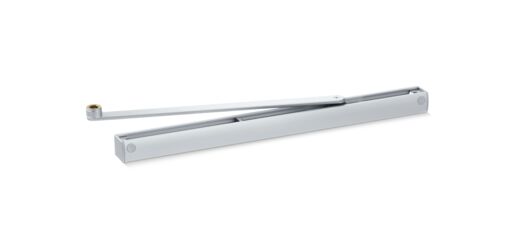

Overhead door closer with guide rail, for opposite hinge side, for accessible single leaf doors of up to 1250 mm leaf width with opening support
Closing force of EN 3-5 with variable adjustment
Barrier-free in accordance with DIN 18040 up to EN 5 (1250 mm leaf width)
Can be used for right and left hand doors without conversion
Opening assistance for easy opening and comfortable passing of the door
Opening assistance can be switched off for doors with wind load or pressure differences
Hydraulic latching action which accelerates the door shortly before it is closed
Select your desired system components here:
Component
Accessories
Installation materials
Spare parts
Product Details
Technical data
Downloads
Application Areas
- Fire and smoke protection doors
- Right and left single-action doors
- Single-action doors up to 1250 mm leaf width
- Door leaf installation opposite hinge side and transom installation hinge side
- Access for all in accordance with DIN 18040 up to EN 5
