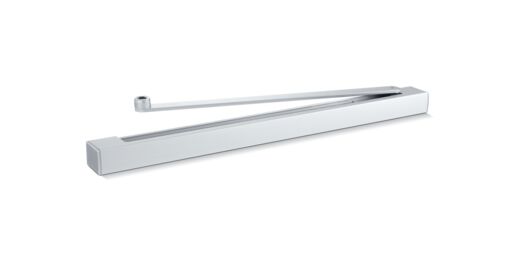

TS 5000 L-E ECline
Overhead door closer with guide rail for barrier-free, easy-to-open single leaf doors up to 1250 mm leaf width with electric hold-open device
Closing force of EN 3-5 with variable adjustment
Operating voltage 24 V DC
Can be used for right and left hand doors without conversion
Electric hold-open device in the guide rail with hold-open area from 80°
Smoke switch control unit can be connected, whose signal makes the door close automatically in the event of a fire
Hydraulic latching action which accelerates the door shortly before it is closed
Select your desired system components here:
Component
Accessories
Installation materials
Spare parts
Product Details
Technical data
Downloads
Application Areas
- Fire and smoke protection doors
- Right and left single-action doors
- Single-action doors up to 1250 mm leaf width
- Door leaf installation opposite hinge side and transom installation hinge side
- Hold-open systems with integrated hold-open device
