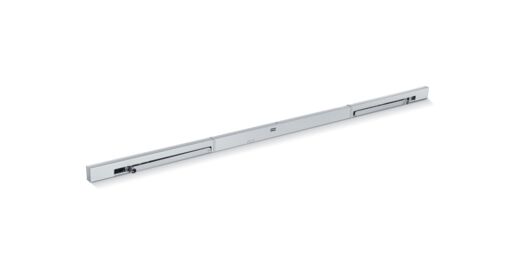

TS 5000 R-ISM ECline
Overhead door closer system with guide rail for barrier-free, easy-to-open double leaf doors with closing sequence control and smoke switch control unit
System with two door closers TS 5000 ECline, R-ISM guide rail
Closing force of EN 3-5 with variable adjustment
Operating voltage 230 V AC
Can be used for right and left hand doors without conversion
Integrated smoke switch control unit, whose signal closes the door automatically in the event of a fire
Smoke switch with contamination indicator and adaption of the alarm threshold
Select your desired system components here:
Component
Accessories
Installation materials
Spare parts
Product Details
Technical data
Downloads
Application Areas
- Fire and smoke protection doors
- Right and left double leaf single-action doors
- Single-action doors up to 2500 mm hinge clearance and 1250 mm leaf width
- Symmetrical and asymmetrical division of door possible
- Door leaf installation hinge side
- Hold-open systems with integrated hold-open device
