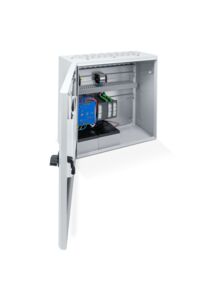

MBZ 300 N10
SHEV control panel for smoke and heat extraction system drives with a total current consumption of 10 A
Modular design to allow flexible adaptation to project-specific requirements
Convenient extension by clicking on other modules in a control unit
Can be extended by alarm groups, ventilation groups and alarm lines as required
Depiction of complex smoke and heat extraction scenarios
Simple service and installation thanks to status display directly on the module
Configuration software simplifies commissioning and configuration
Ident-No. | Name | Description | Colour | Output current (max.) | IP rating | Operating voltage | Free module slots | Approvals | Power consumption (max.) | Battery capacity | Vent groups | Standard conformity | Material | Frequency of supply voltage | Output voltage | Dimensions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 137428 | MBZ 300 N10 | 10 A output current. Including rechargeable battery Exterior dimensions: 400 x 500 x 200 mm | grey | 10 A | IP30 | 230 V AC | 8 | VdS | 240 W | 12 Ah | 1 | EN 12101-10. ISO 21927-9 | Sheeting | 50 Hz | 24 V DC +/-15% | 400 x 500 x 200 mm |
Select your desired system components here:
Accessories
Spare parts
Product Details
Downloads
Application Areas
- Connecting possibilities for small smoke and heat extraction solutions, including with complex demands
- For smoke and heat extraction system drives with a total power consumption of 10 A
- Control of electromotive 24 V drives for smoke and heat extraction in the event of a fire
- Control of a controlled natural ventilation
