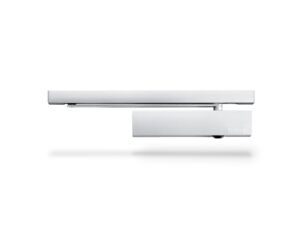

TS 5000 SoftClose E
Overhead door closer with guide rail for single leaf doors of up to 1400 mm leaf width with latching action and brake-to-stop function with electric hold-open device
Closing force of EN 2-6 with variable adjustment
Operating voltage 24 V DC
Can be used for right and left hand doors without conversion

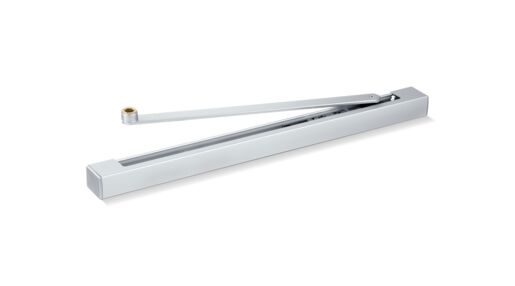

Electric hold-open device in the guide rail with hold-open area of 80°-130°
Smoke switch control unit can be connected, whose signal makes the door close automatically in the event of a fire
Latching action/smooth latching function can be adjusted from the front via valve
Select your desired system components here:
Component
Accessories
Installation materials
Spare parts
Product Details
Technical data
Downloads
Application Areas
- Fire and smoke protection doors
- Right and left single-action doors
- Single-action doors up to 1400 mm leaf width
- Door leaf installation hinge side
- Hold-open systems with integrated hold-open device
