TS 5000 R-ISM/0 ECline
Overhead door closer system with guide rail for double leaf doors with integrated closing sequence control and smoke switch without electric hold-open device
System of two TS 5000 ECline door closers, R-ISM/0 guide rail without electric hold-open device
Closing force of EN 3-5 with variable adjustment
Operating voltage 230 V AC
Can be used for right and left hand doors without conversion
Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
Integrated smoke switch control unit, whose signal closes the door automatically in the event of a fire
Select your desired system components here:
Component
Accessories
Installation materials
Spare parts
Product Details
Technical data
Downloads
Application Areas
- Fire and smoke protection doors
- Right and left double leaf single-action doors
- Symmetrical and asymmetrical division of door possible
- Single-action doors with hinge clearance up to 2500 mm
- Minimum hinge clearance 1500 mm, minimum width of the active leaf 875 mm and of the passive leaf 400 mm

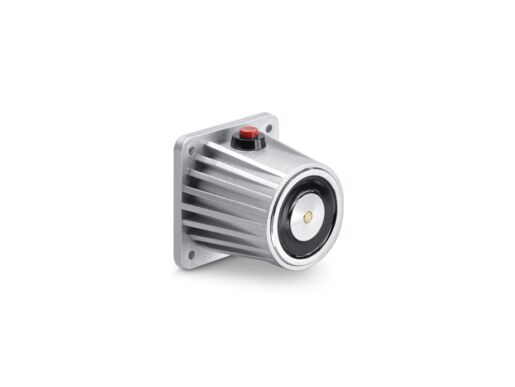

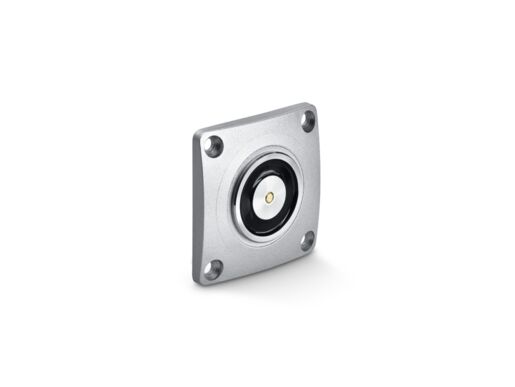

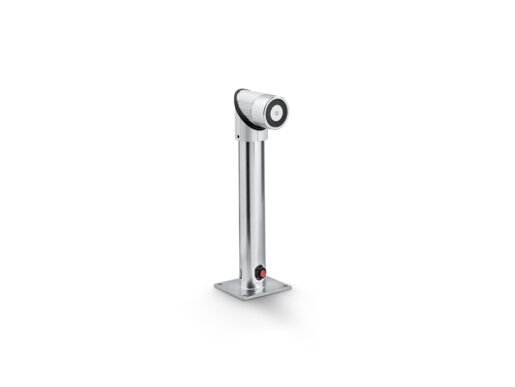

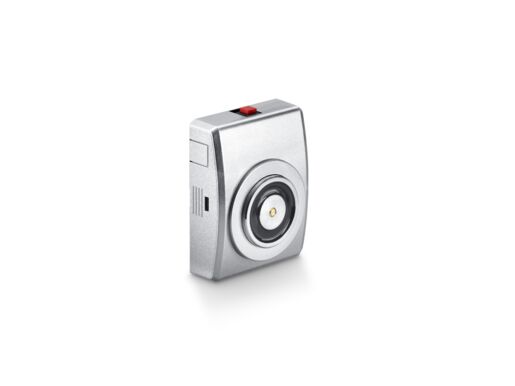

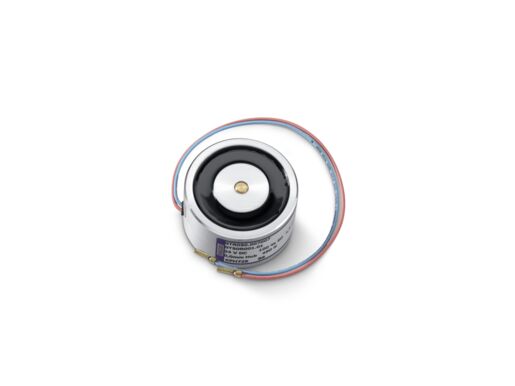

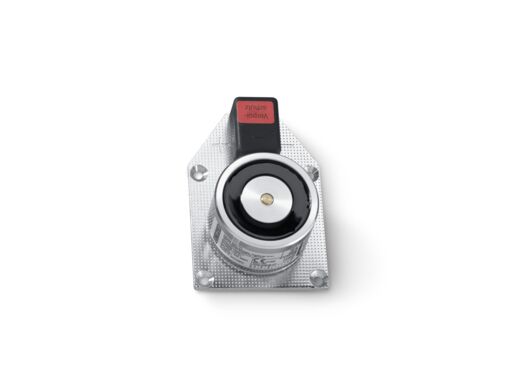

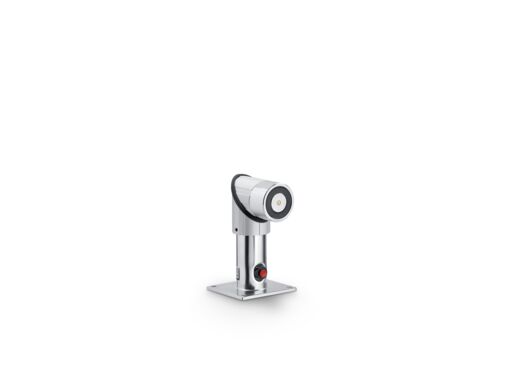

- Hold-open systems with hold-open magnet (as accessory) and smoke switch (integrated into the guide rail)
- Door leaf installation hinge side
