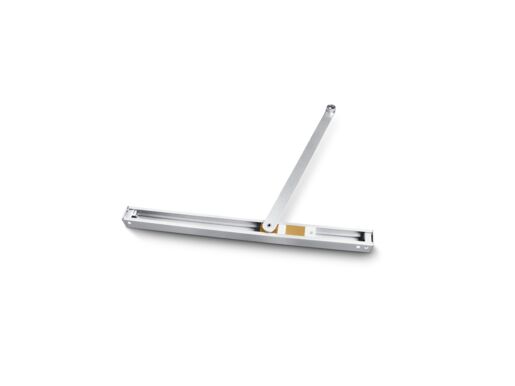

TS 5000 L SoftClose
Opposite hinge side overhead door closer with guide rail for single-leaf doors up to 1400 mm leaf width with latching action and brake-to-stop function
Closing force with variable adjustment EN 3-6
Can be used for right and left hand doors without conversion
Latching action/smooth latching function can be adjusted from the front via valve
Closing speed can be individually adjusted
Integrated back check, slows down doors that are thrown open forcefully
Visual closing force display for easy control of the setting
Select your desired system components here:
Component
Accessories
Installation materials
Spare parts
Product Details
Technical data
Downloads
This overhead door closer for single leaf doors represents clear lines. It is authorised for installation on fire and smoke protection doors.
Application Areas
- Fire and smoke protection doors
- Right and left single-action doors
- Single-action doors up to 1400 mm leaf width
- Door leaf installation opposite hinge side and transom installation hinge side
