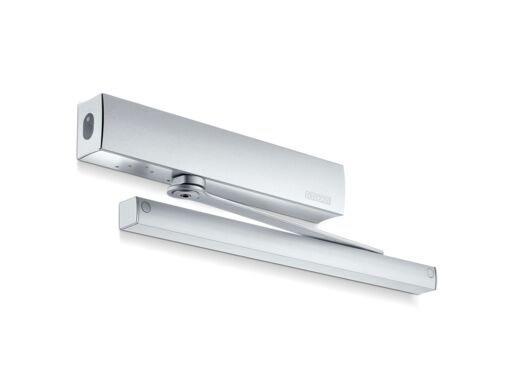

TS 5000 EFS 3-6 KB
Overhead door closer with guide rail for single leaf doors up to 1400 mm leaf width with electric free swing function transom installation hinge side
Closing force with variable adjustment EN 3-6
Operating voltage 24 V DC
Can be used for right and left hand doors without conversion
Free swing function makes it possible to pass through the door with little physical force required
Comfort hold-open function locks the door at the end of the free swing area
External smoke switch control unit, whose signal closes the door automatically in the event of a fire
Select your desired system components here:
Component
Accessories
Installation materials
Spare parts
Product Details
Technical data
Downloads
Application Areas
- Fire and smoke protection doors
- Right and left single-action doors
- Single-action doors up to 1400 mm leaf width
- Transom installation hinge side
- Hold-open systems with integrated hold-open function with free swing
- Barrier-free access in accordance with DIN 18040
