GC 363+
Combined detector for activating and protecting automatic sliding doors with ten different infrared light curtain configuration settings
Radar movement detector with active infrared light curtain
Reliable detection up to an installation height of 3500 mm
Ten adjustable light curtain configurations without additional light prisms
Reduced installation work needed due to the combination of activation and protection in a single device
Movement direction detection and cross-traffic fade-out reduces energy consumption in the building
All settings can be changed via remote control
Ident-No. | Name | Description | Colour | IP rating | Operating voltage | Connector cable length | Operating voltage | Standard conformity | Dimensions |
|---|---|---|---|---|---|---|---|---|---|
| 203854 | GC 363+ R | Combined detector for the activation and safeguarding of automatic sliding doors | black | IP54 | 24 V | 2600 mm | 12-24 V DC/AC | EN 16005. DIN 18650 | 270 x 58 x 58 mm |
| 203855 | GC 363+ R | Combined detector for the activation and safeguarding of automatic sliding doors | according to RAL | IP54 | 24 V | 2600 mm | 12-24 V DC/AC | EN 16005. DIN 18650 | 270 x 58 x 58 mm |
| 203856 | GC 363+ SF | Combined detector for the activation and safeguarding of automatic sliding doors | black | IP54 | 24 V | 2600 mm | 12-24 V DC/AC | EN 16005. DIN 18650 | 270 x 58 x 58 mm |
| 203857 | GC 363+ SF | Combined detector for the activation and safeguarding of automatic sliding doors | according to RAL | IP54 | 24 V | 2600 mm | 12-24 V DC/AC | EN 16005. DIN 18650 | 270 x 58 x 58 mm |
Select your desired system components here:

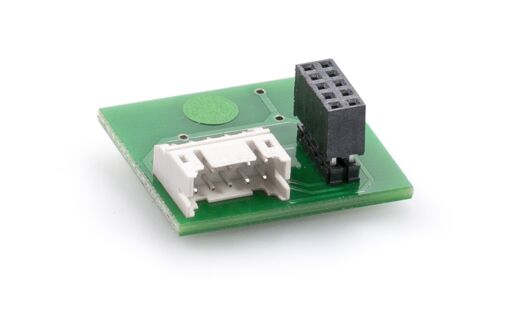

Accessories

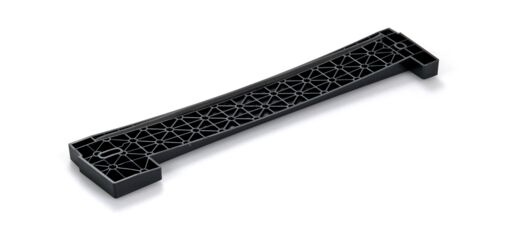

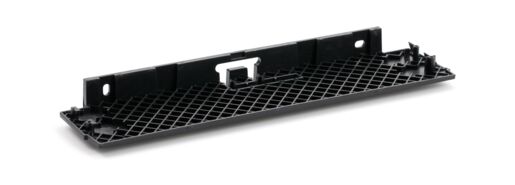

Spare parts
Product Details
Technical data
Downloads
This active infrared detector secures the hazardous area of sliding doors in accordance with EN 16005 / DIN 18650 and on revolving doors in accordance with EN 16005. A selection of ten active infrared detector settings allows for precise protection of various door situations. The optimised housing prevents undesirable insects from getting inside. In addition, the active infrared windows can be cleaned or replaced as needed after they are removed.
Application Areas
- Activation and protection of automatic sliding doors
- Interior and exterior doors
- Complicated flooring, such as reflective floors, entrance mats, metal rails
- Wall, ceiling, or integrated ceiling installation
