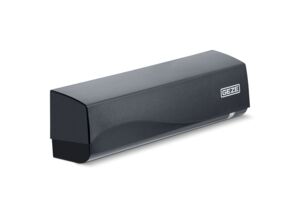

GC 339+
Safety sensor for automatic sliding, revolving, and curved sliding doors, as well as for windows
Reliable detection up to an installation height of 3500 mm
Ten adjustable light curtain configurations without additional light prisms
Convenient commissioning via matrix display
Auxiliary LEDs aid in optimal positioning of the interior light curtain in front of the door leaves during commissioning
Avoidance of hazards at pinching and shearing edges on automated windows
All settings can be changed via remote control
Ident-No. | Name | Description | Colour | IP rating | Operating voltage | Connector cable length | Operating voltage | Standard conformity | Output | Dimensions |
|---|---|---|---|---|---|---|---|---|---|---|
| 203858 | GC 339+ | Safety sensor for automatic doors | black | IP54 | 24 V | 2600 mm | 12-24 V DC/AC | EN 16005. DIN 18650 | Potential-free relay contact | 209 x 58 x 47 mm |
| 203859 | GC 339+ | Safety sensor for automatic doors | according to RAL | IP54 | 24 V | 2600 mm | 12-24 V DC/AC | EN 16005. DIN 18650 | Potential-free relay contact | 209 x 58 x 47 mm |
Select your desired system components here:

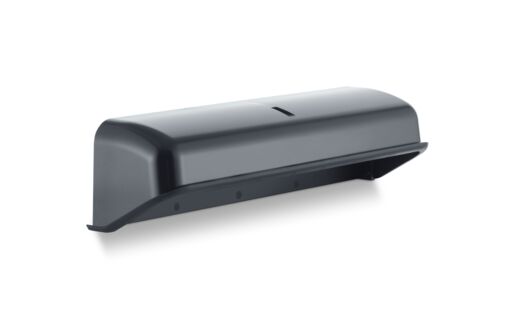

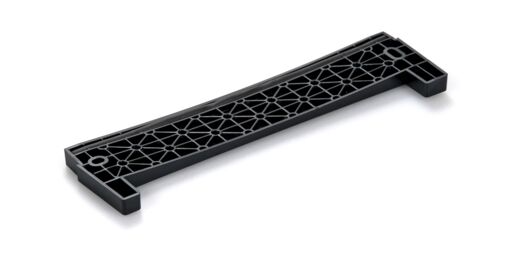

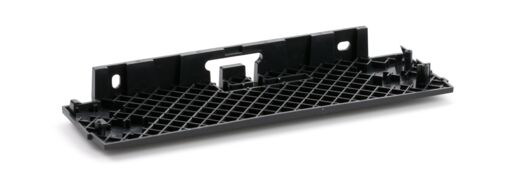

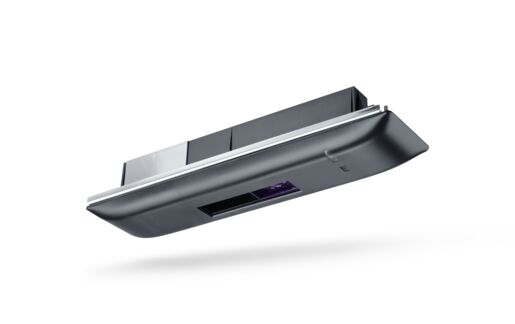

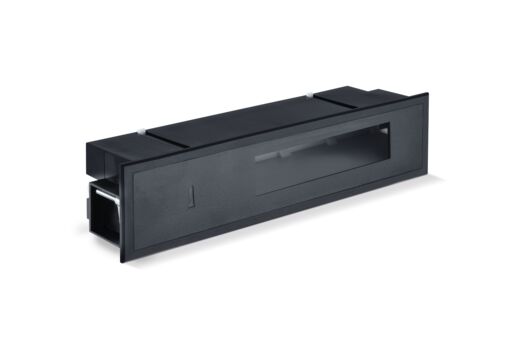

Accessories
Spare parts
Product Details
Technical data
Downloads
This active infrared detector secures the hazardous area of sliding doors in accordance with EN 16005 / DIN 18650 and on revolving doors in accordance with EN 16005. A selection of ten active infrared detector settings allows for precise protection of various door situations. The optimised housing prevents undesirable insects from getting inside. In addition, the active infrared windows can be cleaned or replaced as needed after they are removed.
Application Areas
- Protection of automatic sliding doors
- Automatic sliding doors without protective leaves to protect the secondary closing edge
- Interior and exterior doors
- Protection of the main and secondary closing edges on automated windows
