Slimchain

Chain drive in an attractive design with numerous possible applications in 24 V version

Can be integrated perfectly into the façade design thanks to its slim and discreet look

Continuously adjustable drive stroke and individual speeds for ventilation and smoke and heat extraction

Available as special version - stroke, cable length, colour and alignment configurable to left hand/right hand door

Synchronisation of max. four drives without external control unit

DIP switches for changing the mode of operation (Solo and Syncro, master, slave)

Fast and easy installation with the Smart fix installation system

Please observe the safety instructions in the Product details below

Choose variant

Only show differences

Ident-No.	Name	Colour	Stroke	Description
147030	Slimchain R	EV1	300 mm
147031	Slimchain R	white RAL 9016	300 mm
147035	Slimchain L	EV1	300 mm
147036	Slimchain L	white RAL 9016	300 mm
147040	Slimchain R	EV1	500 mm
147041	Slimchain R	white RAL 9016	500 mm
147045	Slimchain L	EV1	500 mm
147046	Slimchain L	white RAL 9016	500 mm
147050	Slimchain R	EV1	800 mm
147051	Slimchain R	white RAL 9016	800 mm
147055	Slimchain L	EV1	800 mm
147056	Slimchain L	white RAL 9016	800 mm
147070	Slimchain - special version	according to RAL		Can be configured: Stroke, cable length, colour, version L/R

Select your desired system components here:

Accessories

Spare parts

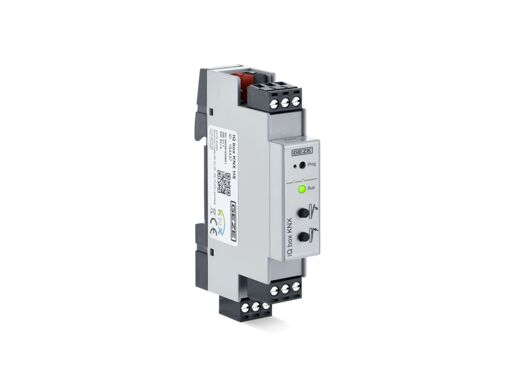

IQ box KNX

Interface module for connecting the Slimchain, Powerchain and E 250 NT window drives in the KNX building bus

Product Details

Choice of brackets for Slimchain

Special version can be configured in terms of opening type and colour

Product Details

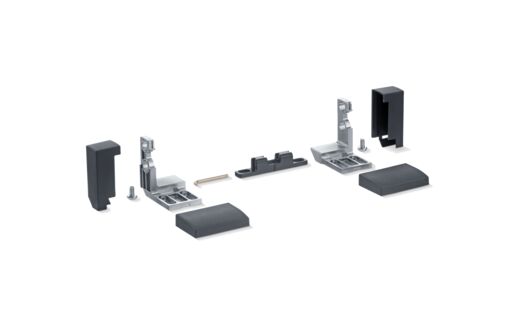

Bracket set A Slimchain

For bottom-hung, side-hung and top-hung windows

Product Details

Bracket set B Slimchain

For bottom-hung, side-hung and top-hung windows

Product Details

Bracket set C Slimchain

For bottom-hung and side-hung windows

Product Details

Bracket set P Slimchain

For parallel-opening windows and projected top hung windows

Product Details

Safety scissors no. 35

For protection of bottom-hung leaves

Product Details

Safety scissors no. 60

For protection of bottom-hung leaves

Product Details

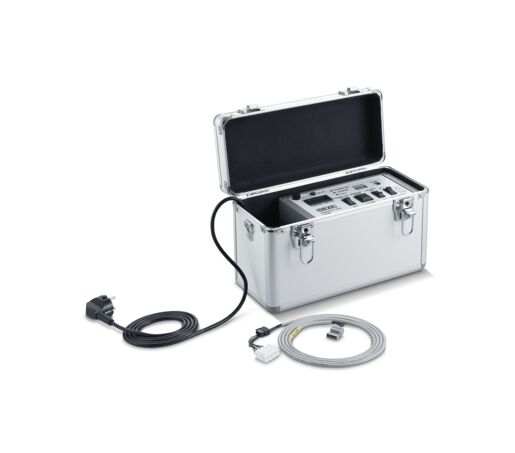

Service case IQ windowdrive

For commissioning and parameter setting of the window drives from the IQ windowdrive range

Product Details

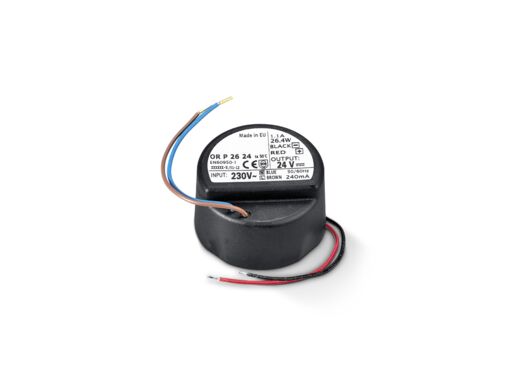

Power supply NT 1.1 A-24 V UP

24 V power supply unit for flush-mounted installation

Product Details

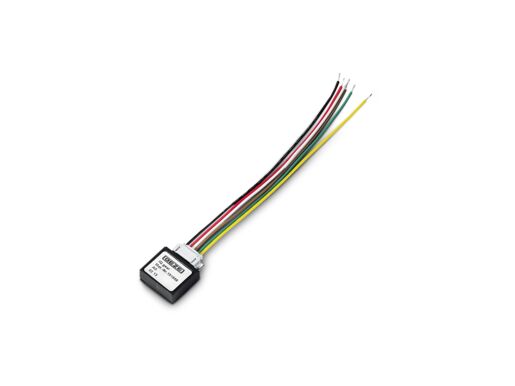

IQ gear

Interface for activation of the Slimchain, Powerchain and E 250 NT window drives in ventilation mode

Product Details

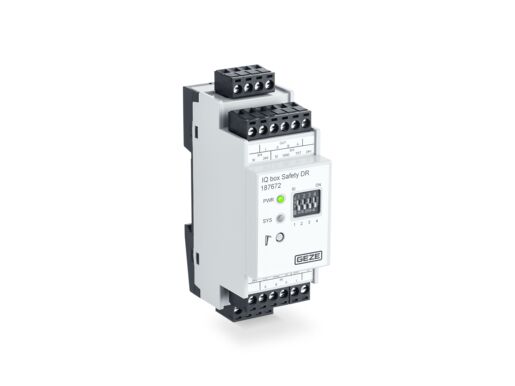

IQ box Safety

Safety module for protecting hazardous areas of power-operated windows

Product Details

NT 2.5 A-24 V SM DIR power supply

24 V power supply for surface-mounted installation with integrated direction control/polarity reversal

Product Details

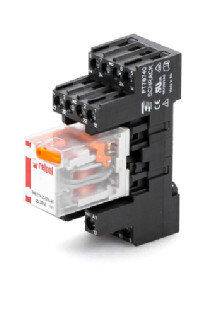

Relay contactors

For group activation with 24 V drives

Product Details

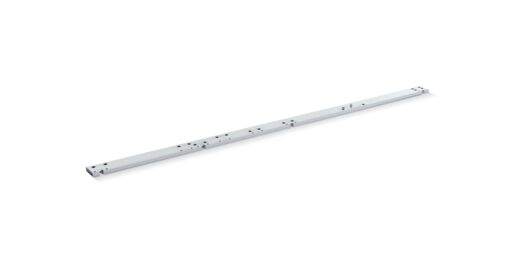

Drilling template chain drives (Slim-/Powerchain)

for bracket sets A and B, inward /outward opening

Product Details

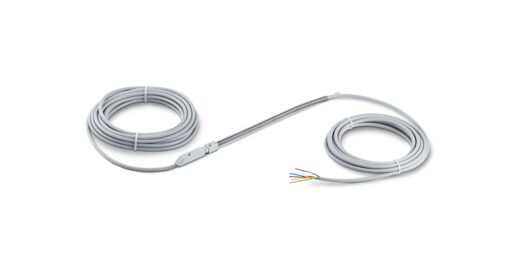

Drip loop

Concealed cable transition for power supply of the window drives

Product Details

OPEN/CLOSE window control

Open/Close window controler for simple ventilation control

Product Details

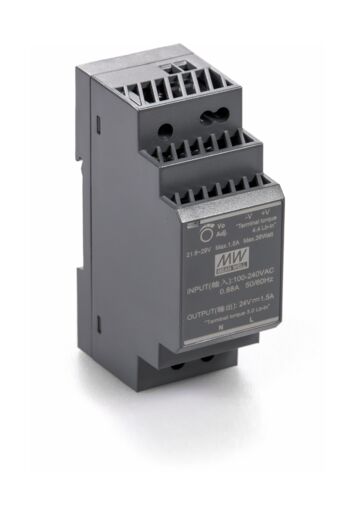

GEZE power supply NT 1.5A-24V HS

24 V power supply for top hat rail mounting

Product Details

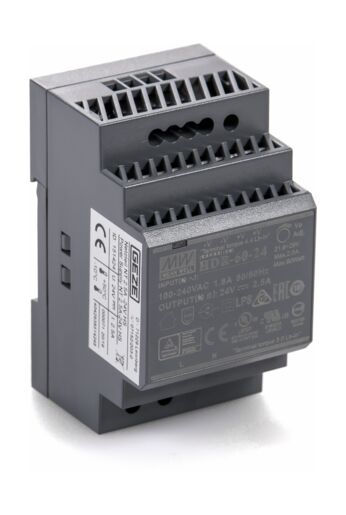

Power supply NT 2.5 A-24 V HS

24 V power supply for top hat rail mounting

Product Details

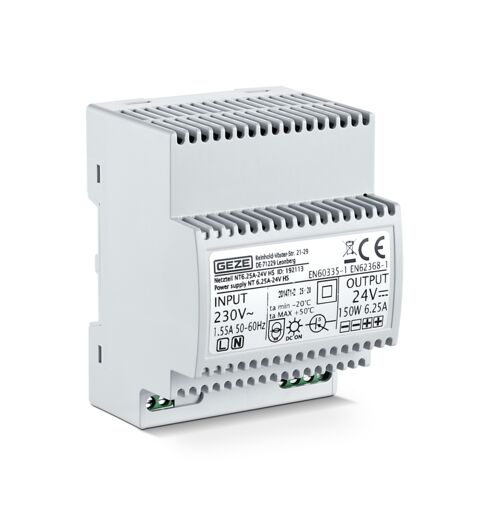

Power supply NT 6.25 A-24 V HS

24 V power supply for top hat rail mounting

Product Details

WRM-24

Receiving module for activating automatic doors and window drives with 24 V DC

Product Details

WRM-24B

Receiving module for activating automatic doors and window drives with 24 V DC

Product Details

WTH

Remote control for activating GEZE automatic doors and window drives via the GEZE wireless programme

Product Details

WTM

Transmitting module for activating GEZE automatic doors and window drives via the GEZE wireless programme

Product Details

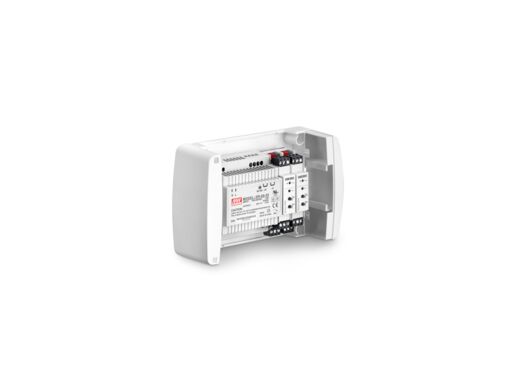

Surface-mounted housing

Housing for surface mounting of top hat rail components such as power supply units or control units

Product Details

LTA-24-AZ

Vent switch with control keys OPEN / CLOSE and LED function display

Product Details

LTA-LSA

Vent switch with rotary knob for OPEN / CLOSE

Product Details

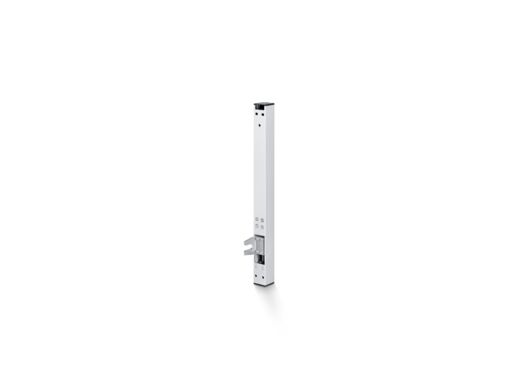

Power lock

Locking drive in combination with Slimchain, Powerchain or E 250 NT

Product Details

Downloads

Application Areas

Smoke and heat extraction system and natural ventilation (24 V) in the façade area

Can be used in exhaust air and air inlet systems

Inward- and outward-opening windows with bottom-hung, top-hung and side-hung leaves

Projected top hung and parallel opening windows

Installation on wooden, PVC or metal windows

Leaf, frame or integrated installation

System solution in combination with the Power lock locking drive

Falling window leaves can be a considerable risk to life and limb of persons in the vicinity. Therefore, the use of GEZE safety scissors is mandatory when using GEZE drives on bottom-hung windows.
