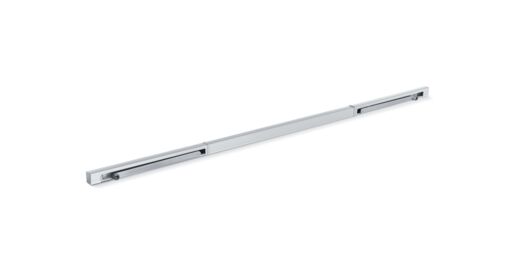

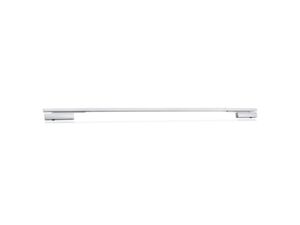

TS 5000 L-ISM
Overhead door closer system with guide rail on opposite hinge side for double leaf doors up to 2800 mm hinge clearance with integrated closing sequence control
System comprising two door closers TS 5000 L and an ISM guide rail for the opposite hinge side
Closing force of EN 2-6 with variable adjustment
Can be used for right and left hand doors without conversion
Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
Hydraulic latching action which accelerates the door shortly before it is closed
Closing speed can be individually adjusted
Select your desired system components here:
Component
Accessories
Installation materials
Spare parts
Product Details
Technical data
Downloads
Application Areas
- Fire and smoke protection doors
- Double leaf single-action doors
- Symmetrical and asymmetrical division of door possible
- Single-action doors up to 2800 mm hinge clearance and 1400 mm leaf width
- Minimum hinge clearance 1360 mm, minimum width of the passive leaf 380 mm
- Panic function available on the active leaf
- Door leaf installation opposite hinge side
