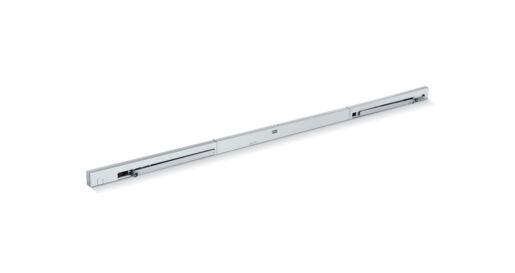

TS 5000 L-R-ISM VP
Overhead door closer system with guide rail on opposite hinge side for double leaf doors with anti-panic function up to 2800 mm hinge clearance with integrated closing sequence control, electric hold-open device and smoke switch control unit
System comprising two TS 5000 L door closers and R-ISM guide rail BG VP
Closing force of EN 2-6 with variable adjustment
Can be used for right and left hand doors without conversion
Electric hold-open device in the guide rail with hold-open area of 80°-130°
Closing sequence control holds the active leaf in the waiting position until the passive leaf is closed
Hydraulic latching action which accelerates the door shortly before it is closed
Select your desired system components here:
Component
Accessories
Installation materials
Spare parts
Product Details
Technical data
Downloads
Application Areas
- Fire and smoke protection doors
- Double leaf single-action doors
- Symmetrical and asymmetrical division of door possible
- Single-action doors up to 2800 mm hinge clearance and 1400 mm leaf width
- Minimum hinge clearance 1645 mm
