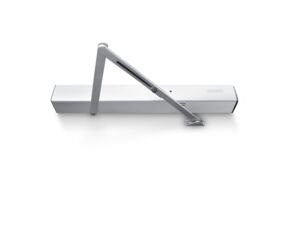

TS 4000 R
Overhead door closer with link arm with electric hold-open device and smoke switch
Closing force EN 1-6 with variable adjustment
Operating voltage 230 V AC
Can be used for right and left hand doors without conversion
Integrated smoke switch control unit, whose signal closes the door automatically in the event of a fire
Smoke switch with contamination indicator and adaption of the alarm threshold
Additional smoke detectors can be fitted
Select your desired system components here:
Component
Accessories
Installation materials
Spare parts
Product Details
Technical data
Downloads
Application Areas
- Fire and smoke protection doors
- Right and left single-action doors
- Single-action doors up to 1400 mm leaf width
- Transom installation opposite hinge side
- Hold-open systems with integrated hold-open device
