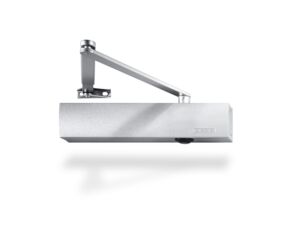

TS 4000 S
Overhead door closer with link arm for single leaf doors of up to 1400 mm leaf width with delayed closing
Closing force with variable adjustment from EN 2-6
Can be used for right and left hand doors without conversion
Delayed closing adjustable to adapt the closing force of the door up to approx 80° opening angle
Hydraulic latching action which accelerates the door shortly before it is closed
Closing speed can be individually adjusted
Integrated back check, slows down doors that are thrown open forcefully
Select your desired system components here:
Component
Accessories
Installation materials
Spare parts
Product Details
Technical data
Downloads
Application Areas
- Fire and smoke protection doors
- Right and left single-action doors
- Single-action doors up to 1400 mm leaf width
- Door leaf installation hinge side and transom installation opposite hinge side
- Door leaf installation on the opposite hinge side using a parallel arm installation is possible up to a closing force of EN 5
