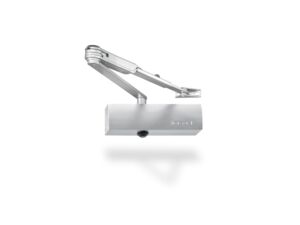

TS 1500 with hold-open arm
Overhead door closer with link arm for single leaf doors with a leaf width up to 1100 mm
Variable closing force of EN 3 or EN 4 by reversing the bearing block
Can be used for right and left hand doors without conversion
Mechanical hold-open unit through hold-open linkage with hold-open area 70°-150°
Hydraulic latching action which accelerates the door shortly before it is closed
Closing speed can be individually adjusted
Select your desired system components here:
Accessories
Product Details
Technical data
Downloads
Application Areas
- Right and left single-action doors
- Holds doors without smoke and fire protection requirements open
- Single-action doors up to 1100 mm leaf width
- Door leaf installation hinge side and transom installation opposite hinge side
- Door leaf installation opposite hinge side in parallel arm installation possible
