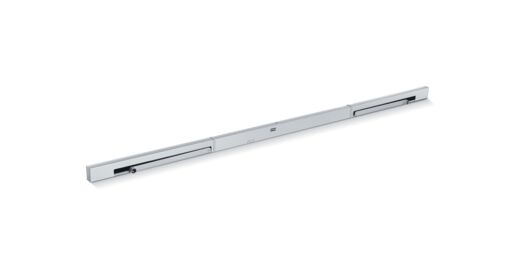

TS 5000 R-ISM/G
Overhead door closer system with guide rail for double leaf doors with integrated closing sequence control and electric hold-open device on the active leaf and smoke switch control unit.
System consisting of two TS 5000 door closers and R-ISM/G guide rail with holding open device on the active leaf
Closing force of EN 2-6 with variable adjustment
Operating voltage 230 V AC
Can be used for right and left hand doors without conversion
Query that the door leaf is held open via a potential-free contact on the electric hold-open device
The passive leaf can be held open using a hold-open magnet
Select your desired system components here:
Component
Accessories
Installation materials
Spare parts
Product Details
Technical data
Downloads
Application Areas
- Fire and smoke protection doors
- Right and left double leaf single-action doors
- Symmetrical and asymmetrical division of door possible
- Single-action doors up to 2800 mm hinge clearance and 1400 mm leaf width
- Minimum hinge clearance 1300 mm, minimum width of passive leaf 400 mm
- Door leaf installation hinge side
