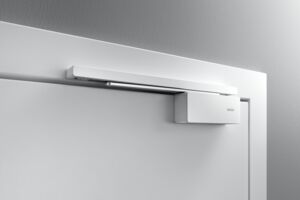

GEZE ActiveStop timber, surface-mounted
Door damper on both sides for interior wooden swing doors
Door opening angle with variable adjustment from 80°-140°
Can be used for right and left hand doors without conversion
Soft opening and closing of doors up to max. 45 kg leaf weight
Gentle stopping, quiet closing and comfortable keeping open of doors
Practically eliminates slamming doors, trapped fingers, and damage to walls and furniture
Secure holding of the door when open, meaning no door is stopper necessary
Ident-No. | Name | Description | Colour | DIN direction | Surface | Category of door | Back check integrated | Leaf weight (max.) | Installation type | Leaf width (max.) | Dimensions |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 184102 | GEZE ActiveStop timber, surface-mounted | Door damper on both sides for interior wooden swing doors | silver-coloured | left / right | painted | flush-mounted, rebated | Yes, hydraulically adjustable | 45 kg | surface-mounted | 1100 mm | 370 x 68 x 34 mm |
| 184104 | GEZE ActiveStop timber, surface-mounted | Door damper on both sides for interior wooden swing doors | white RAL 9016 | left / right | painted | flush-mounted, rebated | Yes, hydraulically adjustable | 45 kg | surface-mounted | 1100 mm | 370 x 68 x 34 mm |
| 184106 | GEZE ActiveStop timber, surface-mounted | Door damper on both sides for interior wooden swing doors | Stainless steel optic | left / right | painted | flush-mounted, rebated | Yes, hydraulically adjustable | 45 kg | surface-mounted | 1100 mm | 370 x 68 x 34 mm |
Product Details
Technical data
Downloads
Application Areas
- Right and left timber single-action doors indoors
- Room doors with high access convenience
- Single-action doors up to 1100 mm leaf width
- Surface-mounted installation, for retrofitting on existing doors
- Barrier-free access in accordance with DIN 18040-2
