E 212 24 V
Electric linear drive for automation of fanlight openers
Cost-effective and simple motorised solution for activating several scissors
Can be integrated perfectly into the façade design thanks to its slim and discreet look
Opening width variably adjustable over stroke length and can be adjusted as necessary
Power cut-off and integrated limit switch as well as stroke are adjustable
Completely pre-mounted assembly groups facilitate installation
Ident-No. | Name | Description | Colour | Stroke | IP rating | Operating voltage | Connector cable length | Tensile force | Number of cores | Type of stroke shortening | Compressive force | Dimensions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 010899 | E 212 | 24 V with 1.2 A current consumption | EV1 | 70 mm | IP42 | 24 V DC | 2 m | 1500 N | 3 cores | Mechanical | 1500 N | 211 x 30 x 80 mm |
| 010915 | E 212 | 24 V with 1.2 A current consumption | according to RAL | 70 mm | IP42 | 24 V DC | 2 m | 1500 N | 3 cores | Mechanical | 1500 N | 211 x 30 x 80 mm |
| 015540 | E 212 | 24 V with 1.2 A current consumption | white RAL 9016 | 70 mm | IP42 | 24 V DC | 2 m | 1500 N | 3 cores | Mechanical | 1500 N | 211 x 30 x 80 mm |
Select your desired system components here:
Accessories
Product Details
Downloads
Application Areas

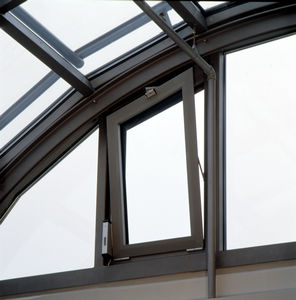

- Automation of GEZE OL 90 N, OL 95 N and OL 320 fanlight openers
- Natural ventilation in the façade area
- Inward-opening bottom-hung leaves
- Installation on wooden, PVC or metal windows
- Frame installation
